Remote Particle Sensors

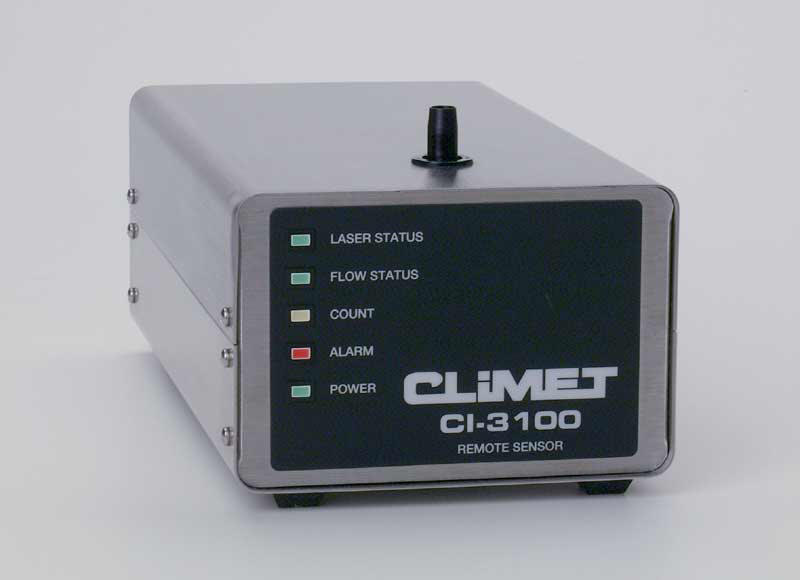

The Climet CI-3100 series remote particle sensors detect microscopic particles
in controlled environments and critical processes. CI-3100 remote sensors are
available with flow rates of 1.0 CFM. Minimum
sensitivitie of 0.5 µm. Power may be supplied from a local 24
volt DC source or a standard AC line. Many choices are available for outputs such
as RS-232, RS-485, or 4-20 ma proportional to count. Sensors may
operate from house vacuum or they may be ordered with self-contained vacuum pumps
at 1 CFM.
Key Features/Benefits- Easy to clean stainless steel enclosure
- Ability to connect to a variety of data logging or standard environmental
monitoring systems
- Enables particle counting data to be collected using standard 4-20 ma input
PLC's
- Available with built-in vacuum pump
- Choose from a variety of signal outputs
- Built-in flow rate sensor available for fail-safe operation
- Laser status continuously monitored
- Choice of internal built-in pump or user supplied vacuum source
- Withstands wash-down activities in the cleanroom
- Modifications and specials will be considered
